In the rapidly evolving field of microelectronics, chemical amplification resists are pivotal for high-resolution photolithography. At the heart of these systems lies the photoacid generator (PAG)—a compound that releases acid upon exposure to light, catalyzing polymer reactions to enhance imaging precision. Among the diverse PAGs, N-Hydroxyphthalimide Tosylate (PIT) stands out for its exceptional performance in deep-UV (248 nm) lithography. This non-ionic sulfonate ester combines low toxicity, tunable acid strength, and superior solubility, making it a preferred choice for next-generation semiconductor manufacturing.
Synthesis: Precision Chemistry for Optimal Performance
PIT is synthesized via a streamlined two-step process, optimized for efficiency and environmental friendliness.
Step 1: Synthesis of N-Hydroxyphthalimide (NHPI)
- Reagents: Phthalic anhydride and hydroxylamine hydrochloride.
- Innovation: Earlier methods used dioxane or methanol solvents, but recent improvements employ anhydrous ethanol (Document 2). This switch reduces reaction temperature and time while maintaining a high yield of 76%.
- Reaction:
- Hydroxylamine is freed from HCl using KOH in ethanol under cooling (<20°C).
- The free base reacts with phthalic anhydride to form an intermediate, followed by dehydration with P₂O₅ to yield NHPI.
- Characterization: White crystalline solid, m.p. 231–233°C. IR spectrum confirms key groups:

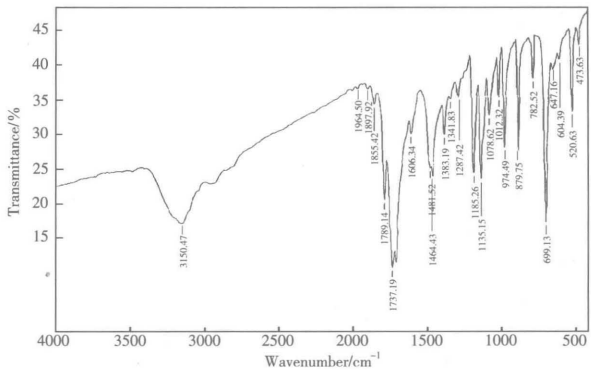

- 3150 cm⁻¹ (–OH stretch), 1789/1737 cm⁻¹ (imide C=O).
- 3150 cm⁻¹ (–OH stretch), 1789/1737 cm⁻¹ (imide C=O).
Step 2: Synthesis of PIT
- Reagents: NHPI + p-toluenesulfonyl chloride.
- Conditions: Reaction in acetone/DMF at 0–5°C under dark, with triethylamine to scavenge HCl (Document 2).
- Yield: 82–86% as a pale-yellow solid, m.p. 161–163°C.
- Characterization:
- ¹H NMR: δ 2.50 (s, 3H, –CH₃), 7.40–7.97 (m, 8H, Ar–H).

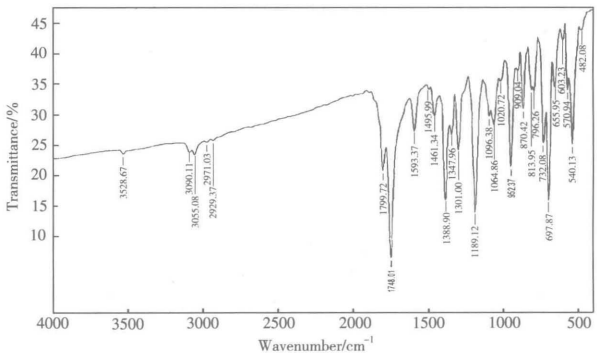

- IR: 1799/1748 cm⁻¹ (imide C=O), 1189/1389 cm⁻¹ (S=O stretch).
Performance Advantages: Why PIT Excels in Lithography
1. Solubility: Breaking Barriers
PIT’s non-ionic nature grants it unmatched solubility in organic solvents critical for photoresist formulations. Comparative data highlights its superiority over ionic PAGs like triphenylsulfonium salts (Document 2):
| Solvent | PIT Solubility (mg/mL) | Triphenylsulfonium Salt (mg/mL) |
|---|---|---|
| PGMEA | 0.055 | 0.007 |
| Ethyl lactate | 0.016 | 0.001 |
This solubility enables homogeneous resin blending and defect-free coating.
2. Deep-UV Transparency: Perfect for 248 nm Lithography

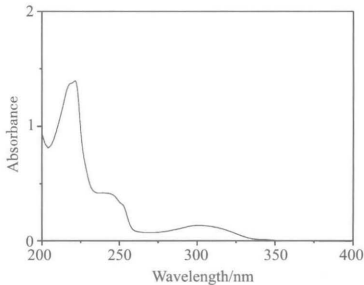

PIT exhibits minimal absorption at 248 nm (absorbance ≈0.375), allowing >60% light transmission even at 20 wt% loading (Documents 1–2). This transparency is crucial for high-fidelity pattern transfer in deep-UV systems.
3. Thermal Stability & Lithographic Performance
- Thermal resilience: No decomposition after 1 h at 160°C (Document 1), exceeding post-exposure bake requirements (<140°C).

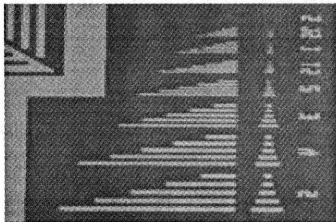

- Enhanced photosensitivity: Exposure to 254 nm light for 3 min followed by development yields high-resolution patterns with extended image retention (non-exposed regions remain intact after 30 s development).
Comparative Edge Over Other PAGs
While ionic onium salts (e.g., sulfonium salts) dominate 248 nm lithography, they suffer from poor solubility and 193 nm opacity. Triazine-based PAGs offer strong acidity but lack structural flexibility. PIT bridges these gaps:
- Toxicity: Sulfonic acids from PIT are less hazardous than HF or HBr from triazines.
- Versatility: Tunable ester groups allow compatibility with positive/negative resists (Document 3).
- Cost-effectiveness: Simplified synthesis with accessible reagents.
Conclusion: PIT—The Future of Deep-UV Lithography
N-Hydroxyphthalimide Tosylate represents a sustainable, high-performance PAG tailored for 248 nm lithography. Its optimized synthesis, exceptional solubility, and deep-UV transparency address critical industry challenges. As semiconductor nodes shrink, PIT’s role in enabling finer features and higher yields will only grow. For researchers and engineers pushing the limits of microfabrication, PIT is not just a chemical—it’s a cornerstone of innovation.
